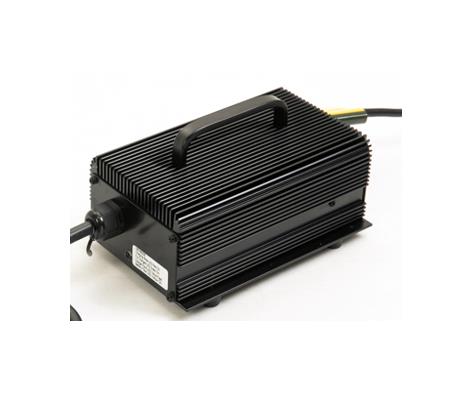

300W-B Charger

PRODUCT SPECIFICATION



Technical data
300W-B INPUT OUTPUT
Model AC Voltage AC Phase Rated Frequency Input Current(Max) Power factor Conversion efficiency Rated output voltage Dimension(mm) Weight  Cooling mode
36V200A AC380V±15% Three phase four wire 50/60Hz <=14.3A ≥ 0.99 ≥ 0.92 43.2V 378X428X623 40KG Air cooling
48V100A AC220V±15% Three phase four wire 50/60Hz <=16.6A ≥ 0.99 ≥ 0.92 57.6V 378X428X623 40KG Air cooling
48V150A AC380V±15% Three phase four wire 50/60Hz <=14.3A ≥ 0.99 ≥ 0.92 57.6V 378X428X623 40KG Air cooling
48V150A AC480V±15% Three phase four wire 50/60Hz <=11.3A ≥ 0.99 ≥ 0.92 57.6V 378X428X623 40KG Air cooling
48V200A AC380V±15% Three phase four wire 50/60Hz <=19A ≥ 0.99 ≥ 0.92 57.6V 378X428X623 40KG Air cooling
48V200A AC480V±15% Three phase four wire 50/60Hz <=15A ≥ 0.99 ≥ 0.92 87.6V 378X428X623 40KG Air cooling
80V65A AC220V±15% Three phase four wire 50/60Hz <=16.2A ≥ 0.99 ≥ 0.92 87.6V 378X428X623 40KG Air cooling
80V150A AC380V±15% Three phase four wire 50/60Hz <=22A ≥ 0.99 ≥ 0.92 87.6V 378X428X623 40KG Air cooling
80V150A AC480V±15% Three phase four wire 50/60Hz <=17.2A ≥ 0.99 ≥ 0.92 87.6V 378X428X623 40KG Air cooling
115.2V100A AC380V±15% Three phase four wire 50/60Hz <=21A ≥ 0.99 ≥ 0.92 129.6V 378X428X623 40KG Air cooling
153.6V70A AC380V±15% Three phase four wire 50/60Hz <=20A ≥ 0.99 ≥ 0.92 172.8V 378X428X623 40KG Air cooling
ꁆ ꁇ
Versatile for Lithium Battery, Gel Battery
